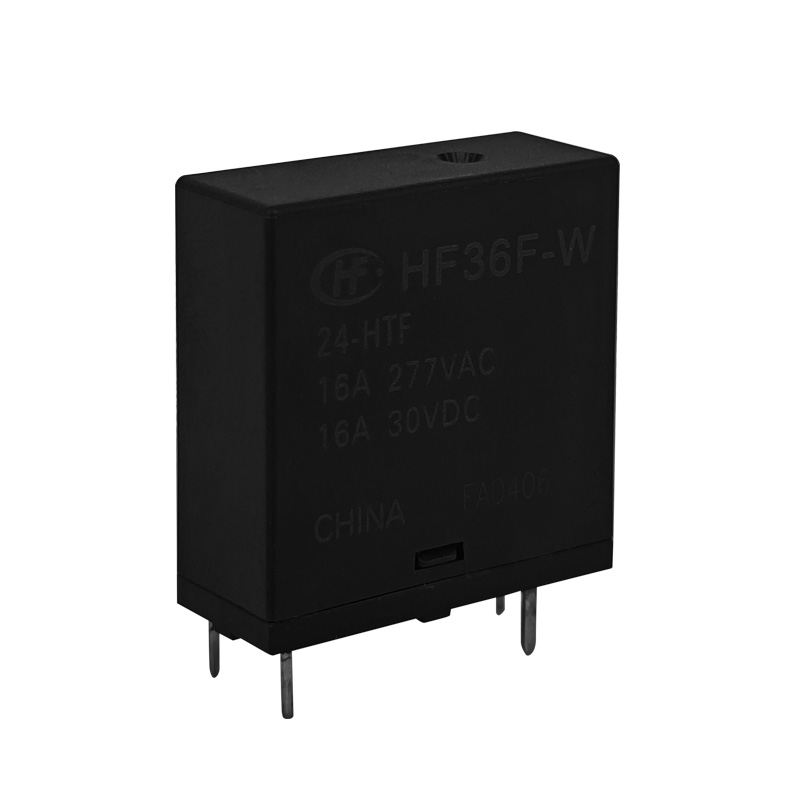

HF36F-W

SUBMINIATURE INTERMEDIATE POWER RELAY

Features

● 16A switching capability

● 3kV dielectric strength (between coil and contacts)

● UL insulation system: Class F

● Standard PCB layout

● Environmental friendly product (RoHS compliant)

Detailed parameters
Type HF36F-W
Coil voltage form DC
Coil voltage 24, 12, 5, 48
Contact arrangement 1 Form A
Contact version Single contact
Mounting PCB
Construction Flux proofed
Coil power Standard
Sort Single side stable
Contact capacity AgSnO2
Insulation standard Class F
Packing method carton packaging
Rated voltage(V) 250Va.c.
Coil power 0.65
Dielectric strength (between coil & contacts) (VAC 1min) 4000
Operate time(ms) ≤15
Release time(ms) ≤5
Coil resistance(Ω) 5:38.5×(1±10%)
12:221×(1±10%)
24:886×(1±10%)
48:3544×(1±10%)
Creepage Distance(mm) ≥5.0
Electrical Distance(mm) ≥4.6
Insulation resistance(MΩ) 1000
Max. switching Current(AC) 16
Max. switching Current(DC) 16
Max. switching voltage(VAC) 250
Max. switching voltage(VDC) 30
Ambient temperature (max)(℃) -40
Ambient temperature (min)(℃) 85
Mechanical endurance min 500000
Electrial eddurance min 10000
Contact gap ≥1.1
Product Description Subminiature Intermediate Power Relay
Application appliances,etc
Typical application Printer、Duplicator
Weight(g) Approx. 12
Volume(mm³) 23.8×9.8×24.9
Product approval UL,TUV
File No. UL:E134517;TUV:R50356442
3D Model
File name Product model and specification number Update time
HF36F-W.stp 2020/11/4 14:32:23
